名前: | ABB IRB6700 6の軸線の工業用ロボットの腕アセンブリ磨く盗品の溶接ロボットおよびペイロード300Kgの範囲2700mm | 適用: | 磨いているアセンブリ溶接を選ぶ |
---|---|---|---|
ペイロード: | 300kg | 範囲: | 2700mm |
斧の数: | 6 | 材料: | アルミ合金 |
保護: | Std:IP67. | 取付け: | 逆になる床 |
反復性を置いて下さい: | 0.10mm | コントローラー: | IRC5単一のキャビネットIRC5 PMCのパネルによって取付けられるコントローラー |

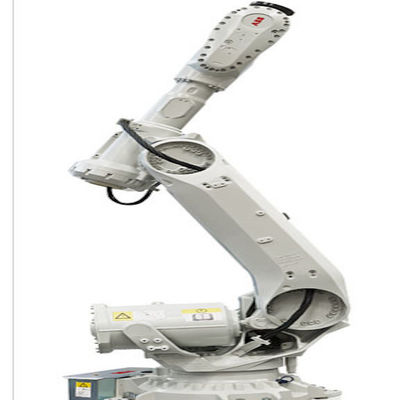

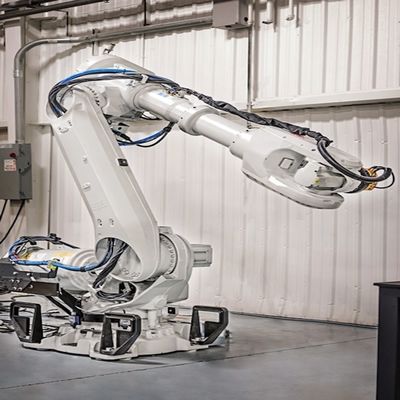

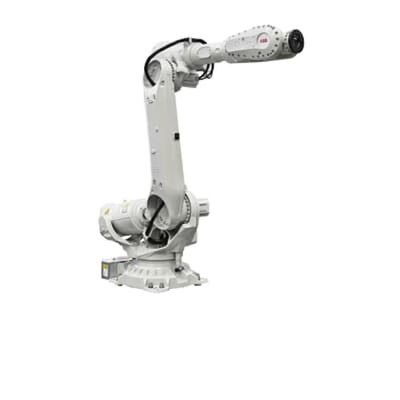

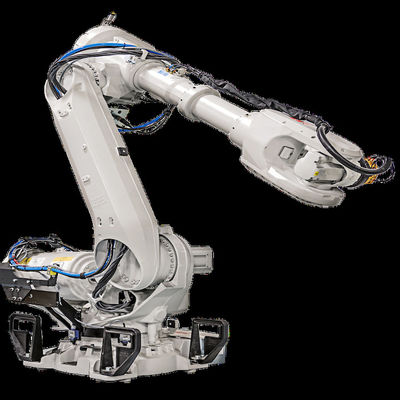

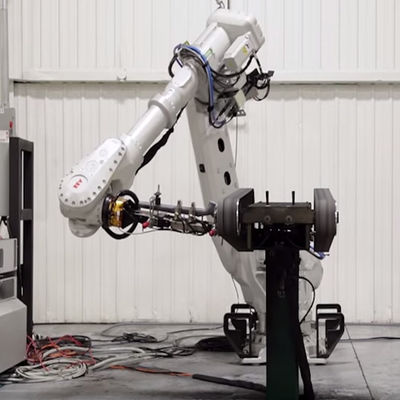

ABB IRB6700 6 Axis Industrial Robot Arm Assembly Polishing Picking Welding Robot and Payload 300Kg Reach 2700mm
Specification
Robot version | Reach(m) | Handling capacity(kg) | Center of gravity(kg) | Wrist torque(Nm) |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 200 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 155 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 150 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 300 | 300 | 1825 |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 175 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 140 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 145 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 270 | 300 | 1825 |
Number of axes 6 | ||||
Protection | Std:IP67.Option:Foundry Plus 2 | |||
Mounting | Floor,inverted | |||
Controller |
IRC5 Single Cabinet/ IRC5 PMC Panel Mounted Controller |
Performance(according to ISO 9283)
Position repeatability |
Path repeatability |
|
IRB 6700-200/2.60 | 0.05mm | 0.10mm |
IRB 6700-155/2.85 | 0.10mm | 0.15mm |
IRB 6700-150/3.20 | 0.10mm | 0.15mm |
IRB 6700-300/2.70 | 0.10mm | 0.15mm |
Technical information
Electrical Connections | ||
Supply voltage | 200-600 V,50/60 Hz | |
Energy consumption | 2.8KW | |
Physical | ||
Robot base | 1004x720 mm | |
Robot weight(without Dress Pack) | ||
IRB 6700-200/2.60 | 1250kg | |
IRB 6700-155/2.85 | 1260kg | |
IRB 6700-150/3.20 | 1280kg | |
IRB 6700-300/2.70 | 1525kg |
