robotic welding arm KUKA KR120 R3200 6 axis welding robot with robot welding torch and OTC DM350 welder

基本情報
起源の場所: 中国
ブランド名: KUKA
価格: $50,000.00/Sets 1-9 Sets
供給の能力: 50組のセット/セット每の 月
条件: 新しい 機械タイプ: 溶接のマニピュレーター
適当な企業: 衣服の店、建築材料の店、機械類の修理工場、プリント ショップ、建築工事、食糧及び飲料の店、広告会社 ショールームの位置: どれも
ビデオ出て行点検: 提供される 機械類のテスト レポート: 提供される
販売のタイプ: 通常のプロダクト 中心の部品の保証: 1年
中心の部品: PLC 保証: 1年
主セリング・ポイント: 有名なブランドPLC 重量(KG): 1075
電圧: 380V 現在: 220
次元: 830のmm X 830のmm 使用法: 溶接
製品名: industriのロボット価格の自動ロボットおよび工業用ロボットの腕 モデル: KR120 R3200
姿勢の反復性: ± 0.06 mm 斧の数: 5
土台位置: 足跡: 830のmm X 830のmm
重量: およそ1075のkg 保護評価: IP65
コントローラー: KR C4のコンパクト ペンダントを教えなさい: KUKAのsmartPAD
港: 上海

robotic welding arm KUKA KR120 R3200 6 axis welding robot with robot welding torch and OTC DM350 welder

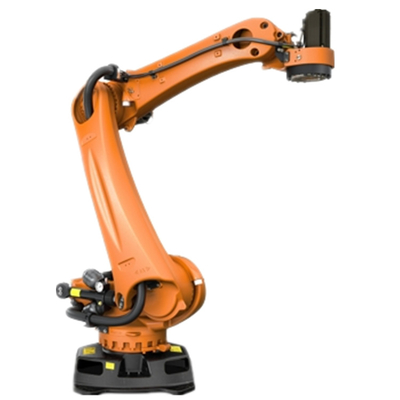

Product image
robotic welding arm KUKA KR120 R3200 6 axis welding robot with robot welding torch and OTC DM350 welder 0robotic welding arm KUKA KR120 R3200 6 axis welding robot with robot welding torch and OTC DM350 welder 1robotic welding arm KUKA KR120 R3200 6 axis welding robot with robot welding torch and OTC DM350 welder 2robotic welding arm KUKA KR120 R3200 6 axis welding robot with robot welding torch and OTC DM350 welder 3



Product Description



Specification
Product name  robotic welding arm KUKA KR120 R3200 6 axis welding robot with robot welding torch and OTC DM350 welder
Model KR120 R3200 PA
Maximum reach 3195mm
Maximum payload 472 kg
Pose repeatability (ISO 9283) ± 0.05 mm
Number of axes 5
Mounting position Floor
Footprint 830 mm x 830 mm
Weight approx. 1075kg
Protection rating IP65
Controller  KR C4 compact
Teach pendant  KUKA smartPAD

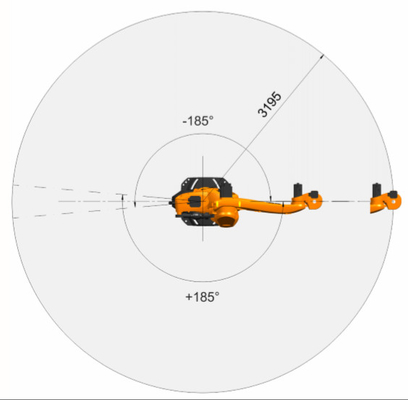

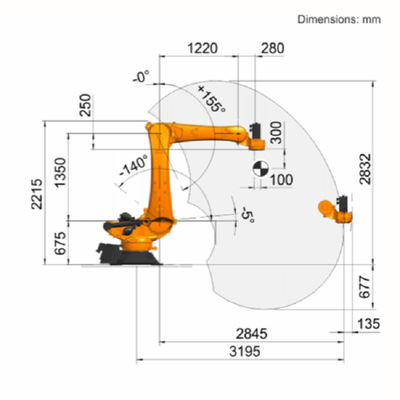

Motion range
A1 ±185°
A2 (-140° / 20°)
A3 (0°- 155°)
A4 /
A5 /
A6 ±350°
