適用: | パレットで運搬すること | 特徴: | 軽量のcobot |
---|---|---|---|
条件: | 新しい | 保証: | 1年 |
次元(L*W*H): | 80*80*80 | 力: | 400W |
電圧: | 220v | 適当な企業: | ホテル、衣服の店、建築材料の店、製造工場、機械類の修理工場、食糧及び飲料の工場、農場、レストラン、家の使用、小売り、食料品店、プリント ショップ、建築工事、エネルギー及び他の鉱山、食糧及び飲料の店広告 |
重量(KG): | 65 | ショールームの位置: | 米国、イタリア、フランス、ドイツ、ベトナム、インド |
ビデオ出て行点検: | 提供される | 機械類のテスト レポート: | 提供される |
販売のタイプ: | 新製品2020年 | 中心の部品の保証: | 1年 |
中心の部品: | 変速機、モーター | 製品名: | cobotのパレットで運搬し、6つの軸線のcobotのロボット腕 |
機能: | cobotのパレットで運搬すること | 管理された斧: | 6 |
最高。ペイロード: | 5kg | 反復性: | ±0.05mm |
最高。働く範囲: | 950mm | 温度: | 0-50 ℃ |
入力/出力力: | 24V 2A | 重量: | 24kg |
港: | 上海 |

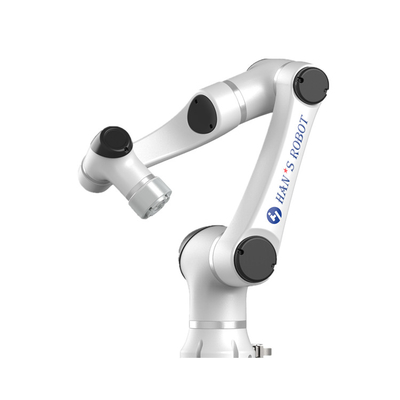

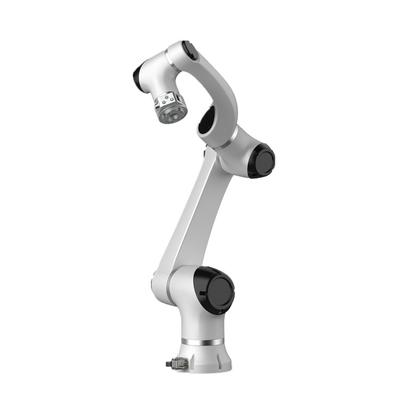

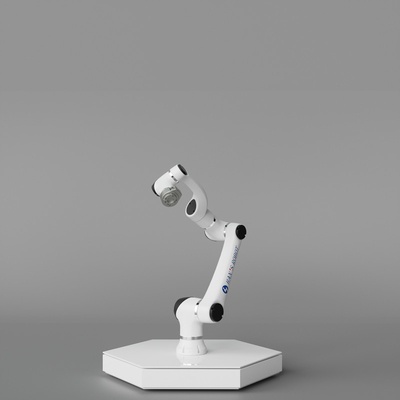

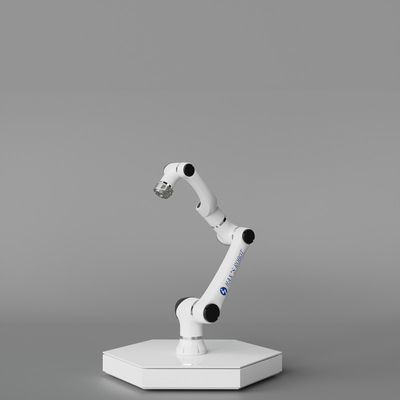

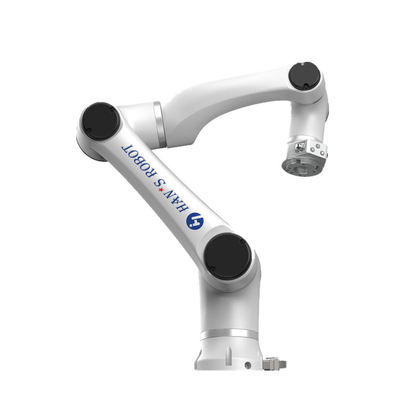

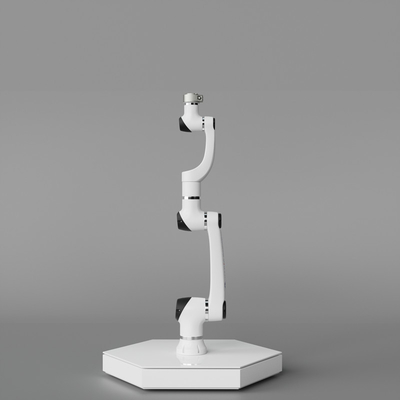

Cobot Hans Elfin 5L payload 5Kg for cobot palletizing and 6 axis cobot robot arm
Features
Safer work
With Elfin robots, there is no need to pay extra for safe operation the same as traditional robots. The robots have high collaborative performance and can perform a protective stop immediately when they encounter resistance, ensuring the safety among co-worker, workpieces, and production equipment.
More Flexible Deployment
Elfin robots can be mounted at any angle and installed anywhere to minimize the impact on the production lines.Redeployment requires very short time and is very suitable for small batches, customized and short-cycle production, which is the best choice for automation transformation.
Easier Operation
Elfin robots can be easily teached by moving the end of the arm to the desired position or desired trajectory,which is greatly saves the programing time. 10 minutes is absolutely enough for building one simple pick and place program.
Fast, Stable Ether CAT bus communication
The controller and robot joint adopt industrial EtherCAT communication, which enables the system to have excellent control performance and strong an-interference ability.
Product Name | Cobot Hans Elfin 5L payload 5Kg for cobot palletizing and 6 axis cobot robot arm |
Weight | 24kg |
Payload | 5kg |
reach | 950mm |
power | 100W in typical cycle |
joint range | ±360° |
joint speed | J1-J4 180°/S J5-J6 200°/S |
tool speed | 2m/s |
repeatability | ±0.05mm/±0.03mm(under normal conditions) |
degree of freedom | 6 |
control box size | 536*445*319mm |
end I/O port | digital input:3,digital output:3,analog input:2 |
control box I/O port | digital input:16,digital output:16, analog input:2,analog output:2 |
I/O source | 24V 2A |
communication | TCP/IP/MODBUS |
programming | graphical programming,remote process call |
IP classification | IP54/IP66 |
collaborative operation | 10 advanced configurations for safety |
main material | aluminum alloy |
working temperature | 0-50℃ |
power input | 200-240V AC,50-60Hz |
cable | cable to connect the control box:5m,cable to connect teach pendant:5 |
Hans Robot EIfin5 Introduction:
1.Swift delivery
