KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA industrial robot arm

基本情報
起源の場所: 中国
ブランド名: KUKA
価格: $50,000.00/Sets 1-9 Sets
供給の能力: 50組のセット/セット每の 月
条件: 新しい タイプ: MIGの溶接工
ビデオ出て行点検: 提供される 機械類のテスト レポート: 提供される
販売のタイプ: 通常のプロダクト 中心の部品の保証: 1年
中心の部品: PLCのエンジン、モーター、圧力容器 モーター タイプ: ACモーター
次元: 1050のmm X 1050のmm 使用法: 溶接
電圧: 380V 力: 220
重量(KG): 2385のKG 保証: 1年
主セリング・ポイント: 長い耐用年数 適当な企業: 衣服の店、他の建築材料の店広告会社
ショールームの位置: どれも 製品名: KR 360 robotandのロボットが付いているR2830 CNCの溶接ロボット
モデル: KR 360 R2830 姿勢の反復性: ± 0.08 mm
斧の数: 6 土台位置:
足跡: 1050のmm X 1050のmm 重量: およそ2385のkg
保護評価: IP65 コントローラー: KR C4のコンパクト
ペンダントを教えなさい: KUKAのsmartPAD

KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm

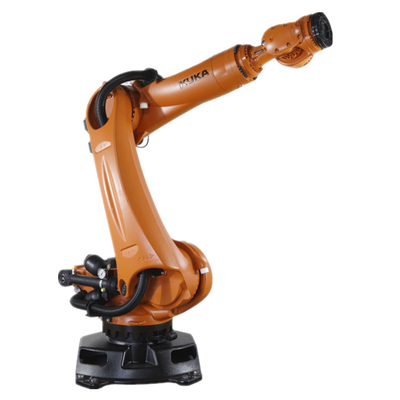

Product image

 KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm 0KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm 1KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm 2KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm 3

Product Description



Specification
Product name  KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm
Model KR 360 R2830
Maximum reach 2826 mm
Maximum payload 472 kg
Pose repeatability (ISO 9283) ± 0.08 mm
Number of axes 6
Mounting position Floor
Footprint 1050 mm x 1050 mm
Weight approx. 2385 kg
Protection rating IP65
Controller  KR C4 compact
Teach pendant  KUKA smartPAD

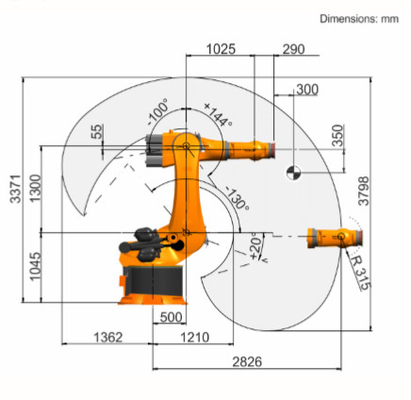

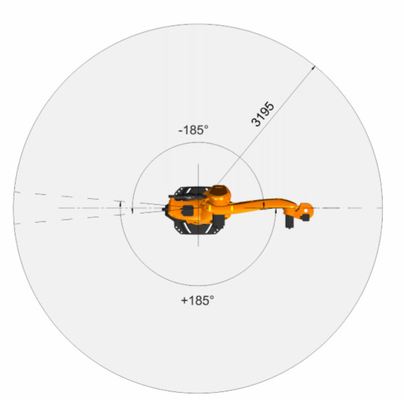

Motion range
A1 ±185°
A2 (-130° / 20°)
A3 (100°- 144°)
A4 ±350°
A5 ±125°
A6 ±350°
