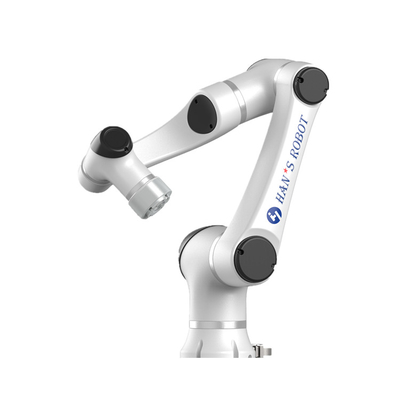

Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg

$12,000.00/Sets >=1 Sets
価格
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
適用: cobotのピッカー
特徴: 軽量のcobot
条件: 新しい
保証: 1年
次元(L*W*H): 60mm*60mm*60mm
力: 100Wについての500W、
電圧: 100-240ボルト
適当な企業: 衣服の店、建築材料の店、製造工場、機械類の修理工場、食糧及び飲料の工場、農場、小売り、プリント ショップ、建築工事、エネルギー及び鉱山、食糧及び飲料の店、広告会社
重量(KG): 68
ショールームの位置: カナダ、米国、イタリア、ドイツ、インド、日本
ビデオ出て行点検: 提供される
機械類のテスト レポート: 提供される
販売のタイプ: 新製品2020年
中心の部品の保証: 1年
中心の部品: 変速機、モーター
モデル名前: Cobotの腕の中国人のハンズの小妖精の3つのcobotのピッカーおよびcobot 3つのkg
最高のペイロード: 3つのkg
最大リーチ: 590mm
コミュニケーション: TCP/IP
保護評価: IP54
姿勢の反復性(ISO 9283): +/- 0.05mm
軸線の数: 6軸線
作動の周囲温度: 0-50°
主要な材料: アルミ合金
港: 上海
基本情報
起源の場所: 上海、中国
ブランド名: Han's/hans
お支払配送条件
パッケージの詳細: 1人のCobotの腕の中国人のハンズの小妖精の3つのcobotのピッカーおよび働く範囲のcobot 580のmmの燻蒸の木フレーム、WGと詰まる3つのkg:茶色箱、WGによって詰まる45KG<br>C
供給の能力: 5つの部分/部分每の 月
製品の説明
Product Description
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 0
Specification
item
value
Place of Origin
China
Shanghai
Brand Name
Han's robot
Application
packaging robot arm
Condition
New
Dimension(L*W*H)
60mm*60mm*60mm
Power
500W
After-sales Service Provided
Overseas service center available
Voltage
100-240 volt
Certification
CE EAC
Applicable Industries
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service
Online support
Local Service Location
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, South Korea, Chile, Colombia, Romania
Showroom Location
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Algeria, Romania, Kyrgyzstan, Nigeria, Australia
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
Gearbox, Motor
Model name
Elfin 3
Max payload
 3 kg
Max Reach
590mm
Communication
TCP/IP
Protection rating
IP54
Pose repeatability (ISO 9283)
+/- 0.05mm
Number of axis
6 axis
Operating ambient temperature
0-50°
Main material
Aluminum alloy
Power
About 100W
Packing & Delivery
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 1
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 2
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 3
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 4
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 5
ONE Chinese brand cobot Han's Robot Elfin 3 collaborative robot used as 6 axis packaging robot arm packing with fumigation wooden frame, WG: 45KG Controller and other parts packing with brown box, WG:55KG Total WG:100KG(>VG)
Company Profile
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 6
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 7
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 8
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 9
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 10
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 11
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(00.00%),Southeast Asia(00.00%),Eastern Europe(00.00%),Western Europe(00.00%),Domestic Market(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot,Control Valve

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
