| Input Signal | Electric |
| Operating Temperature | Standard Temperature, High Temperature |
| Power Source | Local |
| Communication Protocol | 4-20 mA HART |
| Diagnostics | Yes |
| Max Outlet Pressure | 145 psig |
| Position Control | Throttling Control, On/Off |

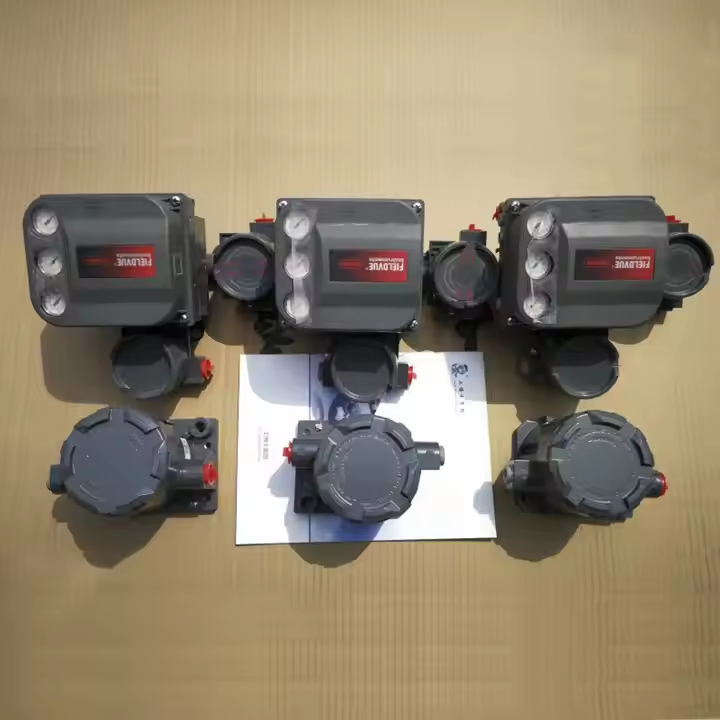

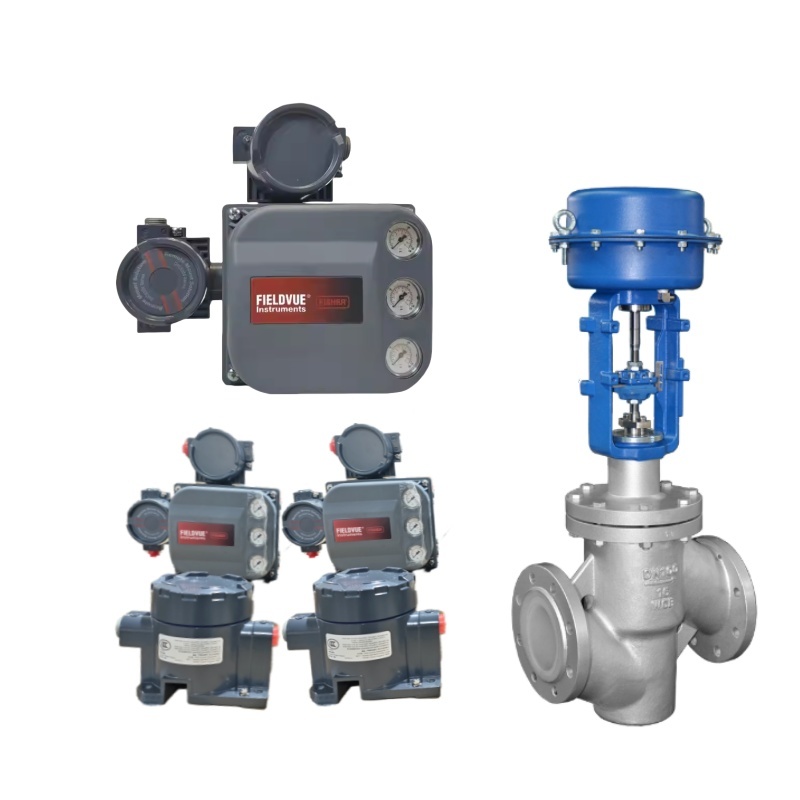

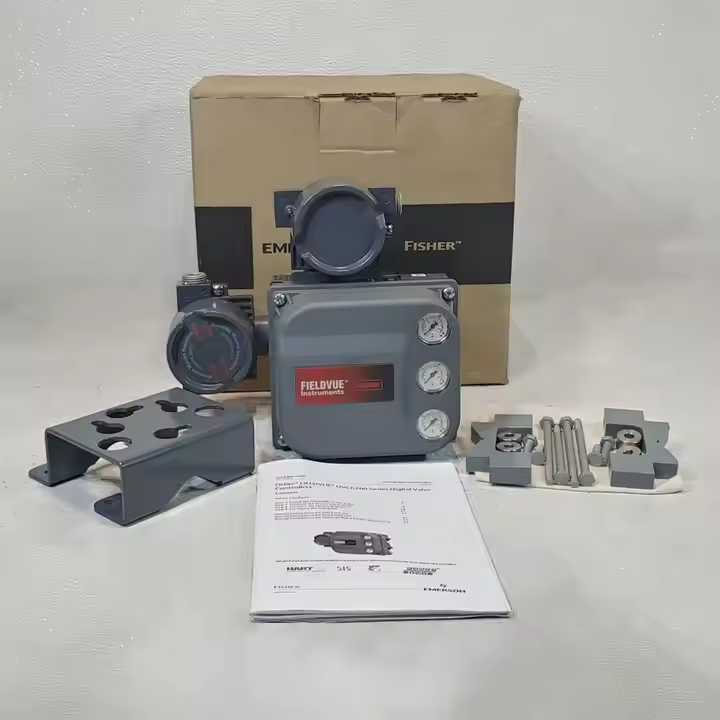

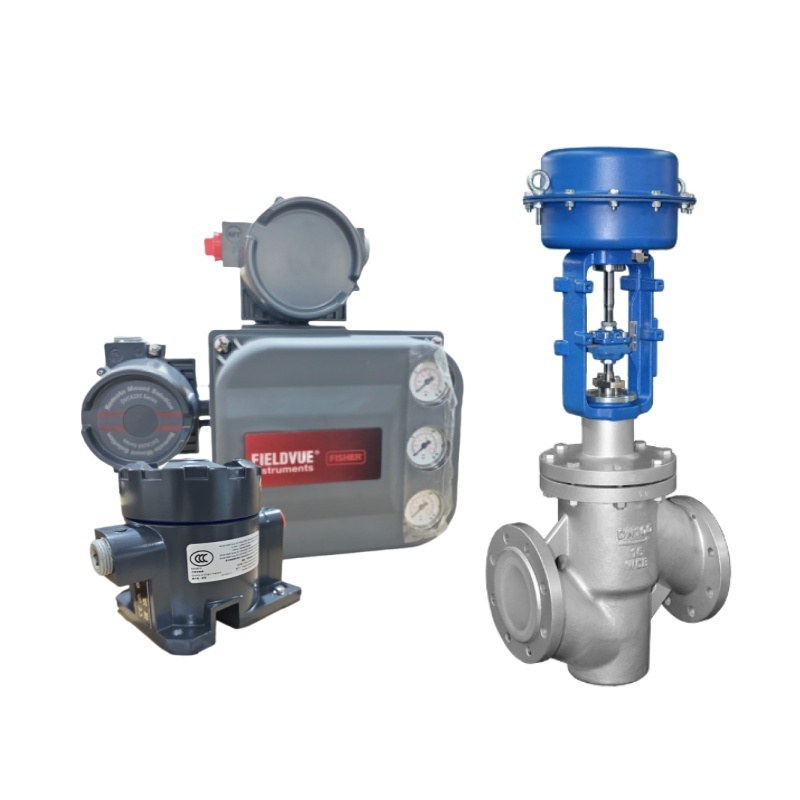

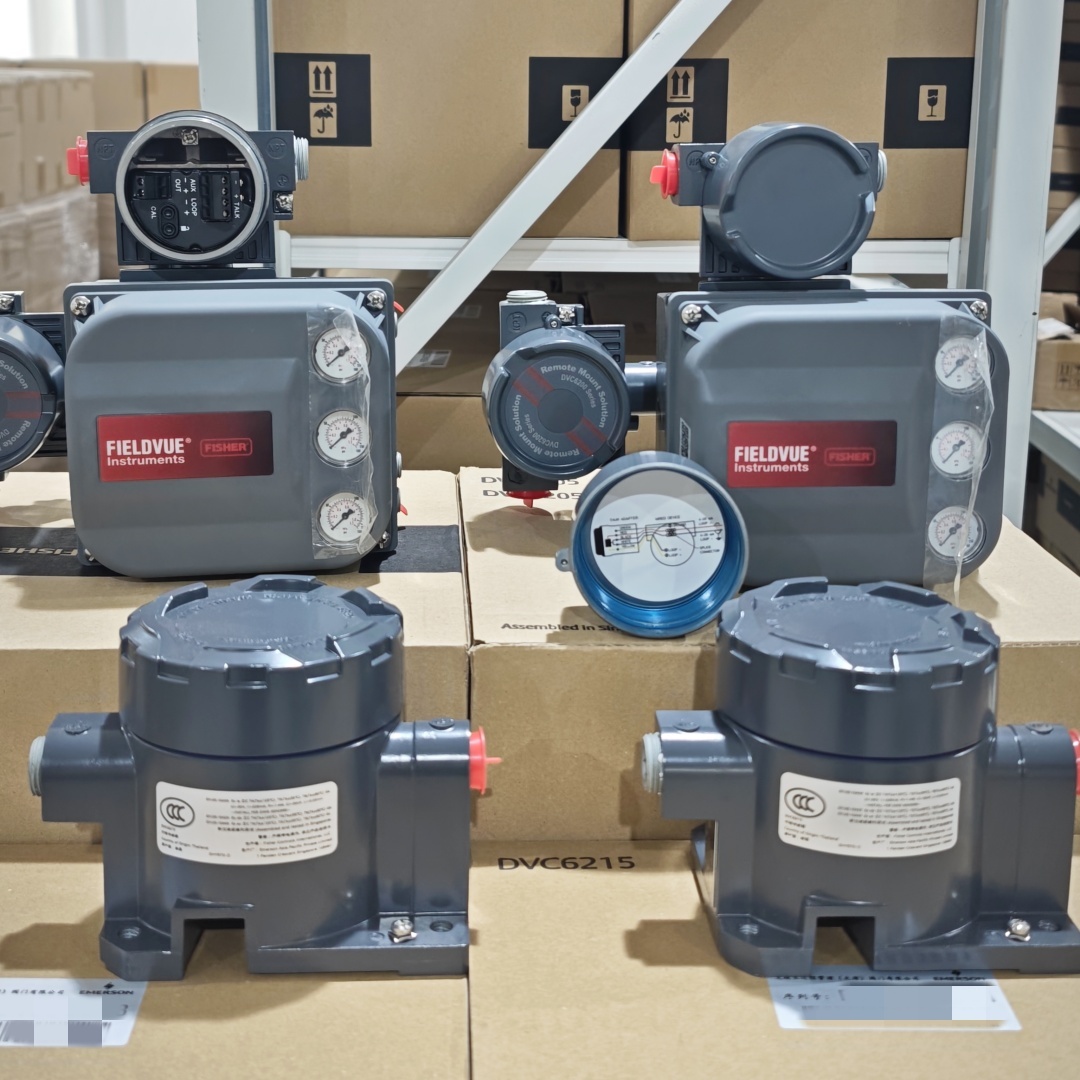

The Emerson Fisher FIELDVUE DVC6205/DVC6215 series represents cutting-edge technology in split-type digital valve positioners, engineered for precision control in industrial automation. These intelligent controllers leverage FIELDVUE diagnostics to deliver real-time performance insights and adaptive tuning for pneumatic actuators.
Designed for harsh environments, the DVC6205 (linear) and DVC6215 (rotary) models support HART and Foundation Fieldbus protocols, ensuring seamless integration with modern control systems. These rugged, explosion-proof positioners are tailored for global process industries.
| Parameter | DVC6205 (Linear) | DVC6215 (Rotary) |
|---|---|---|
| Input Signal | 4-20mA + HART/FF | 4-20mA + HART/FF |
| Output Pressure | 0.2-6 bar (3-90 psi) | 0.1-10 bar (1.5-145 psi) |
| Stroke/Angle Range | 8-250 mm | 24-100° (90° max) |
| Protection Class | IP66 | IP66 |
| Communication | HART 7/Foundation Fieldbus | HART 7/Foundation Fieldbus |
| Explosion-Proof | ATEX/IECEx/NEPSI | ATEX/IECEx/NEPSI |
| Operating Temp | -40°C to 85°C | -40°C to 85°C |
