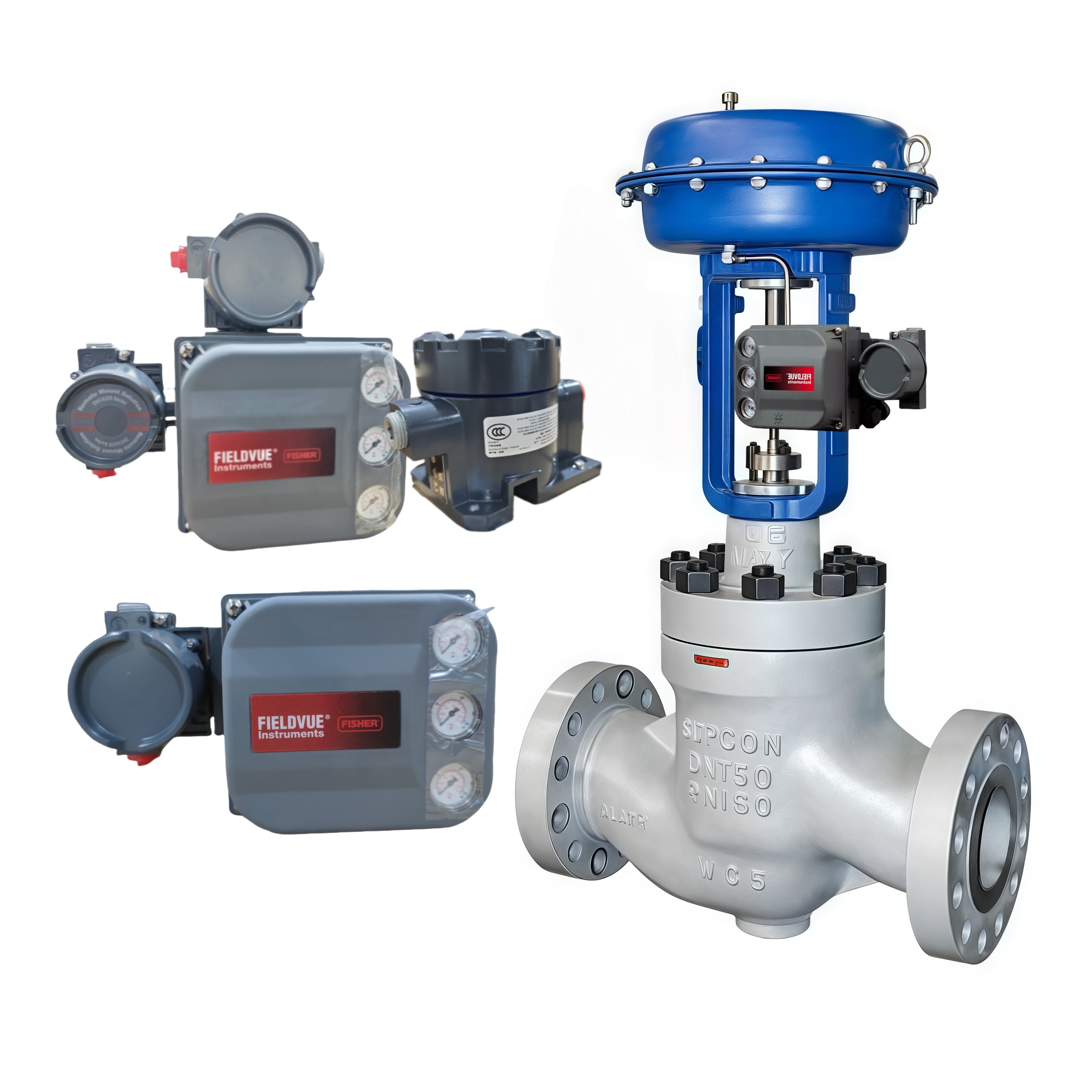

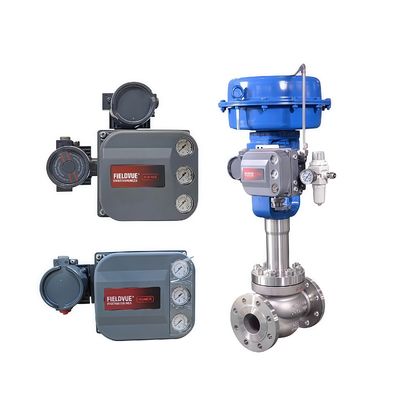

The Fisher DVC6205 and DVC6215 are advanced split-type digital valve positioners designed for precise pneumatic control in industrial automation. As part of Emerson's FIELDVUE series, these smart devices integrate HART and FOUNDATION Fieldbus communication protocols, enabling real-time diagnostics and adaptive tuning.

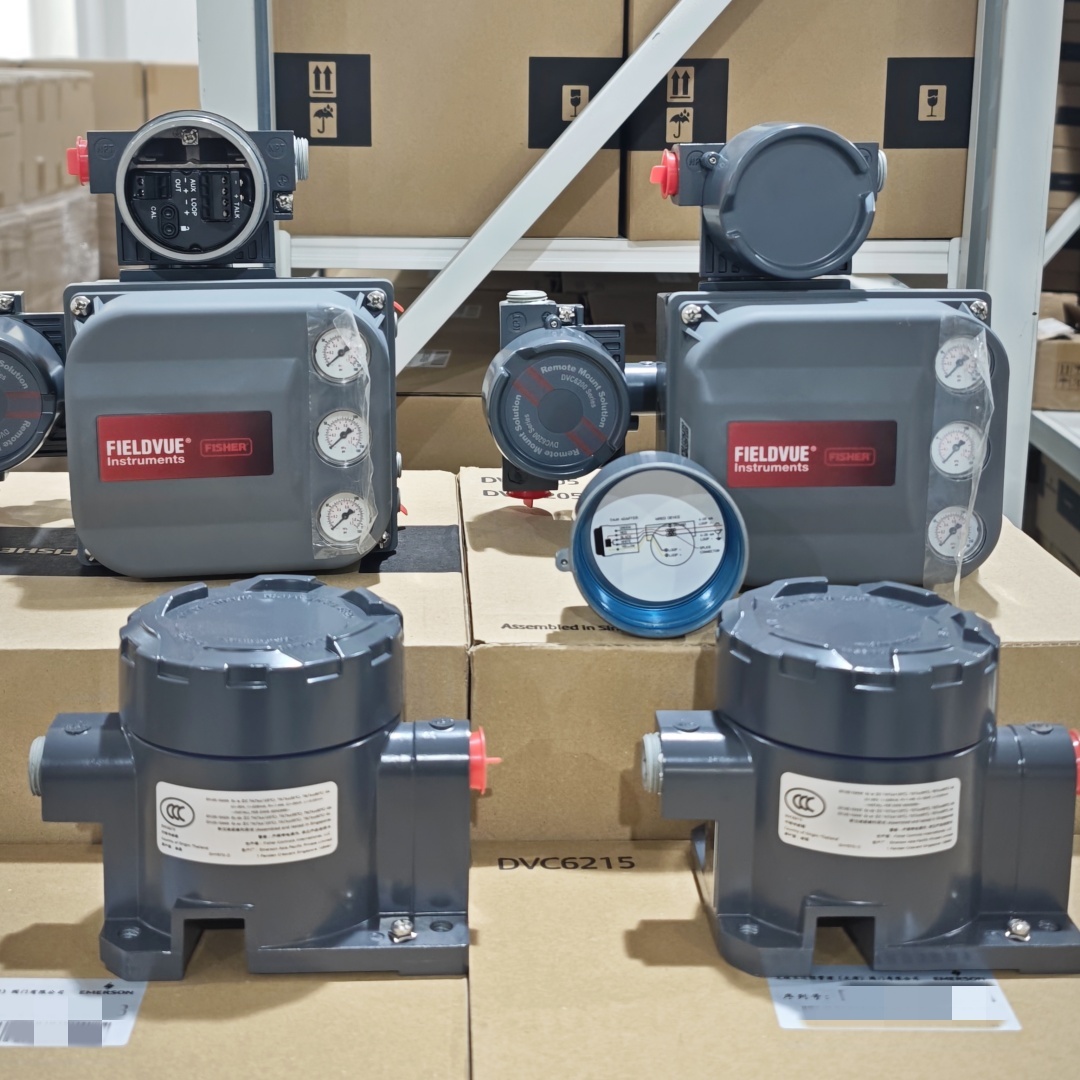

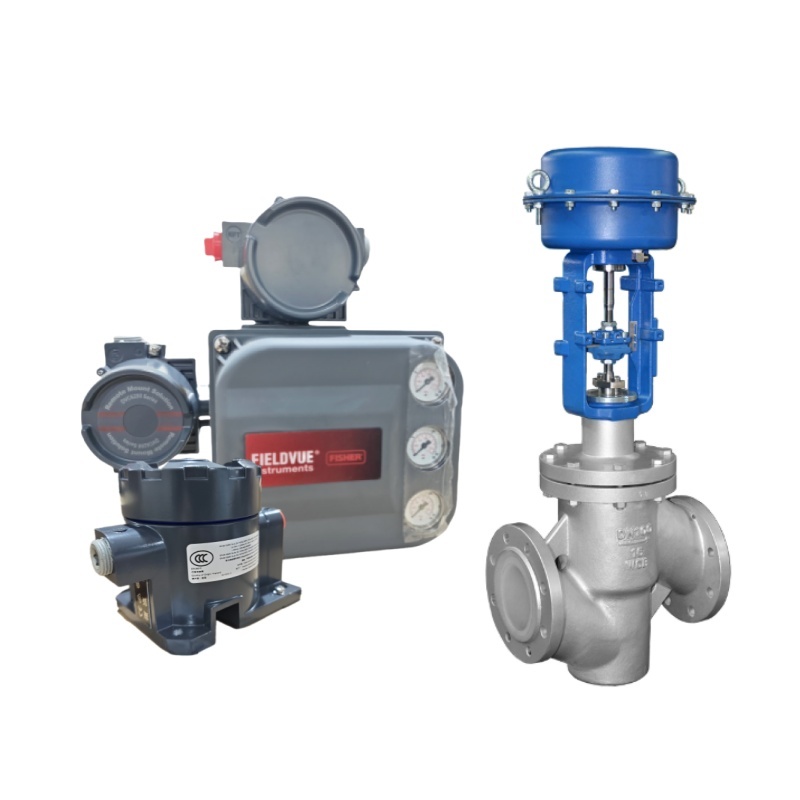

The DVC6205 (base unit) and DVC6215 (remote travel sensor) form a modular system, ideal for applications requiring non-contact feedback or remote mounting. With explosion-proof certifications and robust construction, they ensure reliable performance in harsh environments.
| Input Signal | Electric |
| Data Interface | Wired |
| Supply Media | Non Corrosive Gas |
| Process Control | Flow, Pressure, Temperature, Level |
| Position Control | Throttling Control, On/Off |
| Max Outlet Pressure | 145 psig |
| Diagnostics | Yes |
| Communication Protocol | 4-20 mA HART |
| Parameter | DVC6205 | DVC6215 |
|---|---|---|
| Control Type | Pneumatic | Pneumatic |
| Input Signal | 4-20mA + HART/FF | 4-20mA + HART/FF |
| Accuracy | ±1% (Integral) / ±2% (Remote) | ±1% (Integral) / ±2% (Remote) |
| Output Pressure | 0.2-6 bar / 0.1-10 bar | 0.2-6 bar / 0.1-10 bar |
| Stroke Range | 8-250mm (Linear) / 24-100° (Rotary) | N/A (Feedback Sensor) |
| Communication | HART 7/FOUNDATION Fieldbus | HART 7/FOUNDATION Fieldbus |
| Protection Class | IP66 | IP66 |
| Operating Temp | -40°C to +85°C | -40°C to +85°C |
| Material | Aluminum/Stainless Steel | Aluminum/Stainless Steel |
| Certifications | ATEX/IECEx/NEPSI | ATEX/IECEx/NEPSI |
