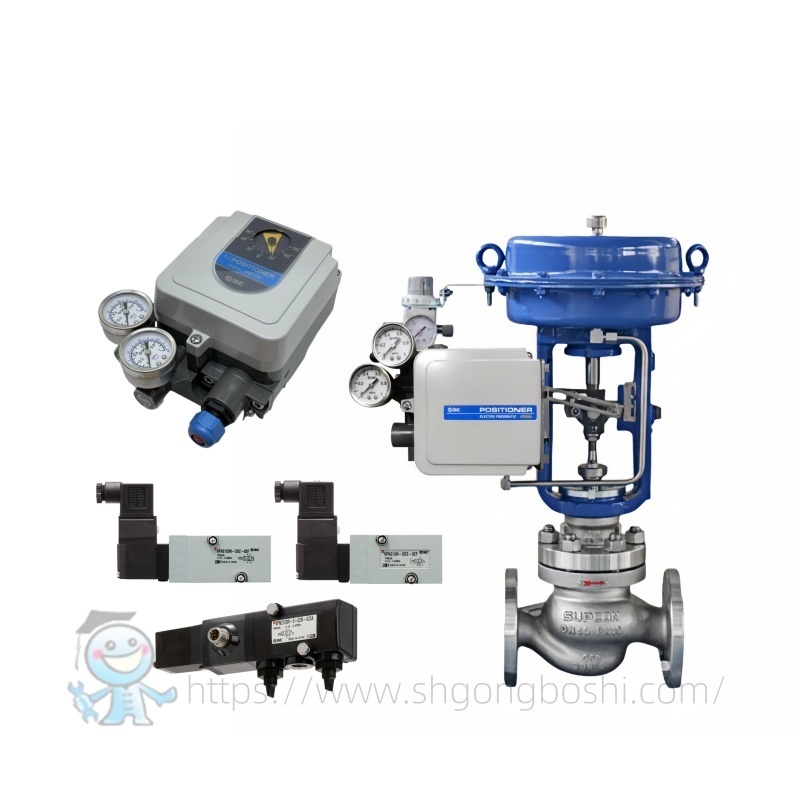

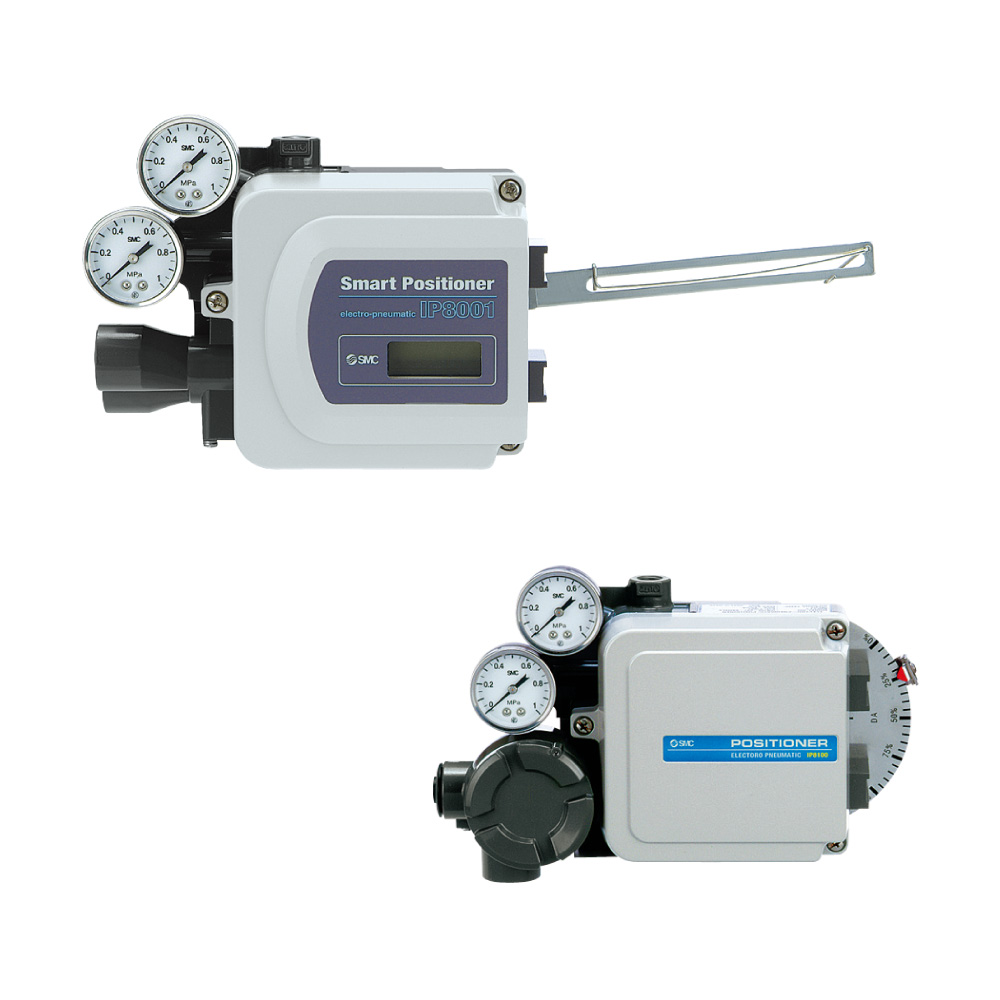

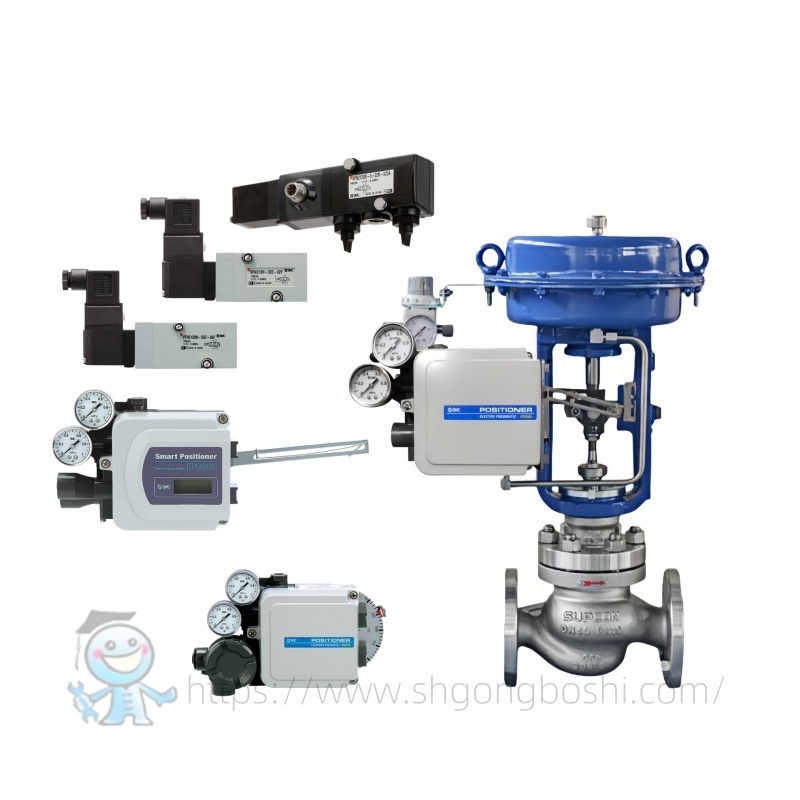

The SMC IP8000-IP8101 series offers smart electro-pneumatic positioners for precise industrial control. With customizable options including explosion-proof housing, stainless steel construction, and PID control, these positioners adapt to diverse environments. The IP8101 model adds auto-calibration and alarm output functions for enhanced reliability.
| Attribute | Value |
|---|---|
| Input Current | 4-20 mA DC (Standard) |
| Repeatability | Within ±0.5% F.S. |
| Output Flow | ≥ 80 L/min (ANR) at 0.14 MPa supply; ≥ 200 L/min at 0.4 MPa |
| Ambient & Fluid Temperature Range | -20 °C to 80 °C (non-hazardous areas) |
| Weight | approx. 2.4 kg |
| Ingress Protection | IP65 |
| Explosion-Proof Construction | Yes |
| Parameter | IP8000/IP8100 | IP8001/IP8101 |
|---|---|---|
| Input Signal | 4-20mA DC | 4-20mA DC (HART) |
| Temperature Range | -35℃ to +60℃ | -20℃ to +80℃ |
| Repeatability | ±0.5%F.S. | ±0.5%F.S. |
| Air Consumption | 3LPM (Sup=1.4kgf/cm²) | 5LPM (Sup=1.4kgf/cm²) |
