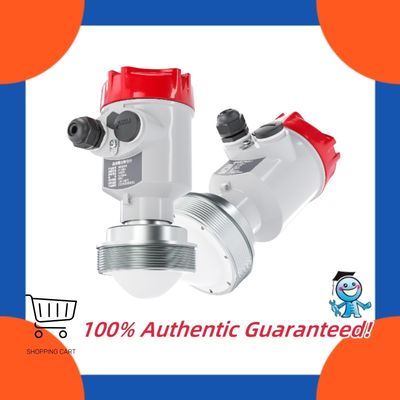

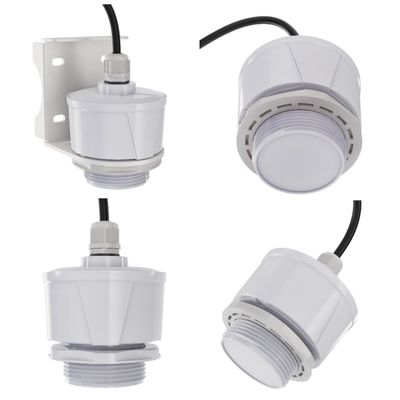

The Supmea WSR300, WSR200, and WSR550 Radar Level Transmitters are cutting-edge FMCW (Frequency Modulated Continuous Wave) solutions for non-contact, continuous level measurement of liquids in closed or open containers. Operating at high frequencies (WSR300: 60-64 GHz, WSR200: 80 GHz, WSR550: 76-81 GHz), these transmitters offer long detection distances, low beam energy, and immunity to process conditions like dust, vapor, and temperature fluctuations. The WSR300 is optimized for general liquid applications with a 30m range, the WSR200 extends to 100m for larger vessels, and the WSR550 reaches 120m with enhanced solid-handling capabilities. Certified for safety and reliability, they ensure precise inventory management and process control in chemical, oil and gas, and water treatment industries.
| Parameter | WSR300 (60-64 GHz) | WSR200 (80 GHz) | WSR550 (76-81 GHz) |
|---|---|---|---|
| Frequency Band | 60-64 GHz | 80 GHz | 76-81 GHz |
| Measuring Range | 0.1–30 m | 0.1–100 m | 0.1–120 m |
| Accuracy | ±3 mm | ±3 mm | ±3 mm |
| Blind Zone | 0.1 m | 0.1 m | 0.08 m |
| Output Signals | 4-20 mA HART, RS485 | 4-20 mA HART, RS485 | 4-20 mA HART, RS485 |
| Power Supply | DC 12–24 V, AC 85–265 V | DC 12–24 V, AC 85–265 V | DC 12–24 V, AC 85–265 V |
| Temperature Range | -40°C to +80°C (process: -200°C to +450°C) | -40°C to +80°C (process: -200°C to +450°C) | -40°C to +150°C (process: -200°C to +450°C) |
| Process Pressure | Up to 40 bar | Up to 40 bar | Up to 40 bar |
| Enclosure Rating | IP66/IP67 | IP66/IP67 | IP66/IP67 |
| Certifications | CE, ATEX (optional) | CE, ATEX (optional) | CE, ATEX (optional) |
| Antenna Type | Horn or flush-mounted | Horn or flush-mounted | Horn or flush-mounted |
The Supmea WSR300, WSR200, and WSR550 Radar Level Transmitters are suited for non-contact level measurement in challenging industrial settings:
They use FMCW technology to emit microwaves, measuring reflection time without physical contact with the medium.
Low beam energy and high frequency ensure accuracy in dusty, steamy, or high-temperature environments.
WSR300 (60 GHz) for standard liquids (30m); WSR200 (80 GHz) for extended range (100m); WSR550 (76-81 GHz) for solids and harsh conditions (120m).
No, they are unaffected by medium density or dielectric constant, requiring no site calibration.
4-20 mA HART and RS485 for compatibility with PLCs and DCS systems.
