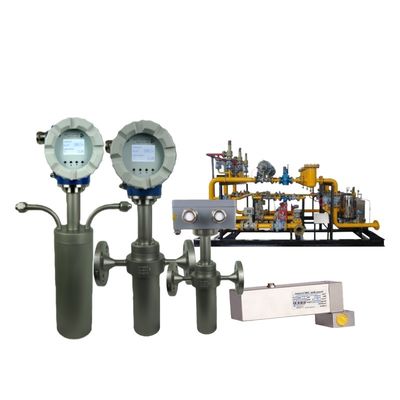

The Bopp & Reuther Density Concentration Meter is an advanced inline analytical instrument that delivers real-time density and concentration data for process optimization and quality assurance. Based on the proven oscillating U-tube principle, it achieves exceptional ±0.0001 g/cm³ accuracy across a wide temperature and pressure range. With integrated temperature compensation, stainless steel wetted parts, and digital communication protocols, the meter enables predictive process control in demanding environments. Ideal for industries requiring precise fluid characterization, it supports seamless integration into DCS and SCADA systems while minimizing maintenance through its non-intrusive design.
| Parameter | Specification |
|---|---|
| Measuring Principle | Oscillating U-Tube |
| Density Range | 0.5 to 3 g/cm³ |
| Accuracy | ±0.0001 g/cm³ |
| Repeatability | ±0.00005 g/cm³ |
| Temperature Range | -40°C to +200°C |
| Pressure Rating | Up to 100 bar |
| Viscosity Range | Up to 20,000 mPa·s |
| Output Signals | 4-20 mA, HART, Profibus |
| Certifications | ATEX, IECEx |
By correlating oscillation frequency to fluid mass in the tube.
Yes, up to 20,000 mPa·s with full accuracy.
No, factory calibration lasts years; only periodic verification needed.
Yes, via HART, Profibus, and 4-20 mA.
Yes, fully cleanable with sanitary options available.
For more information about the Bopp & Reuther Density Concentration Meter, pricing, or to request a demo, contact our team:
