Product Overview

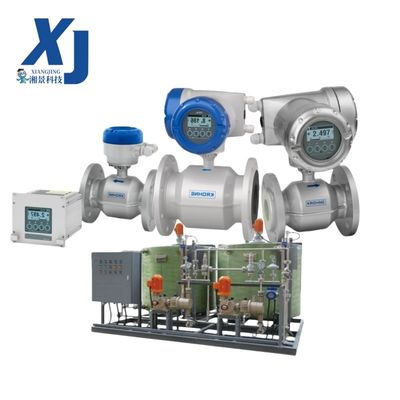

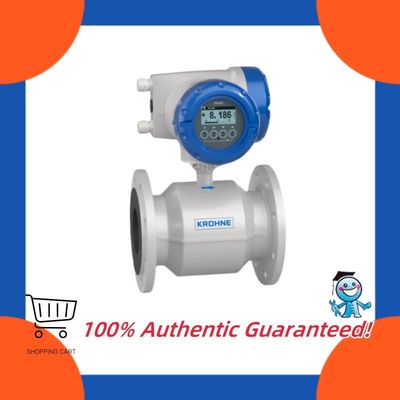

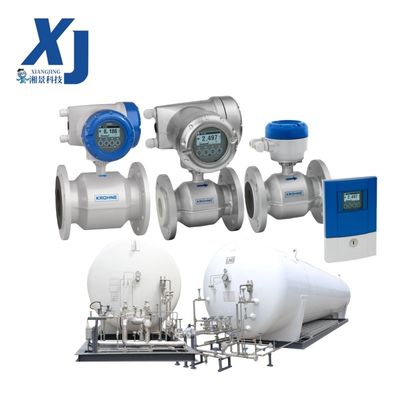

The Krohne OPTIFLUX 2300 is a legal-for-trade electromagnetic flowmeter certified for water custody transfer and revenue billing. With OIML R49 and MID MI-001 approval, it achieves ±0.2% accuracy with full traceability. The virtual reference technology eliminates grounding rings, while the IFC 300 converter includes tamper-proof sealing and event logging. Certified for drinking water, it features a polyurethane liner and IP68 protection for buried installation. Ideal for district metering, bulk supply, and commercial billing, it supports secure data transfer via Modbus and pulse output with legal totalizer.
Key Features
Technical Specifications
| Parameter | Specification |
|---|---|
| Measuring Principle | Electromagnetic |
| Size Range | DN 25 to DN 1200 |
| Accuracy | ±0.2% o.r. (custody) |
| Turndown | 1:1000 |
| Process Temperature | 0°C to +70°C |
| Pressure Rating | PN 16 / Class 150 |
| Liner | Polyurethane |
| Outputs | Pulse, Modbus RTU |
| Protection | IP68 |
| Certifications | OIML R49, MID MI-001, NSF |
Applications
Frequently Asked Questions
Is it OIML R49 certified?
Yes, for cold water custody transfer.
Can it be buried?
Yes, IP68 rated for direct burial.
Is the totalizer legal?
Yes, sealed pulse output with MID.
Does it need grounding?
No, virtual reference technology.
How is data secured?
Event log and Modbus with checksum.
Contact Us
Contact our team for inquiries about the OPTIFLUX 2300 custody transfer version, pricing, or to schedule a demo:
