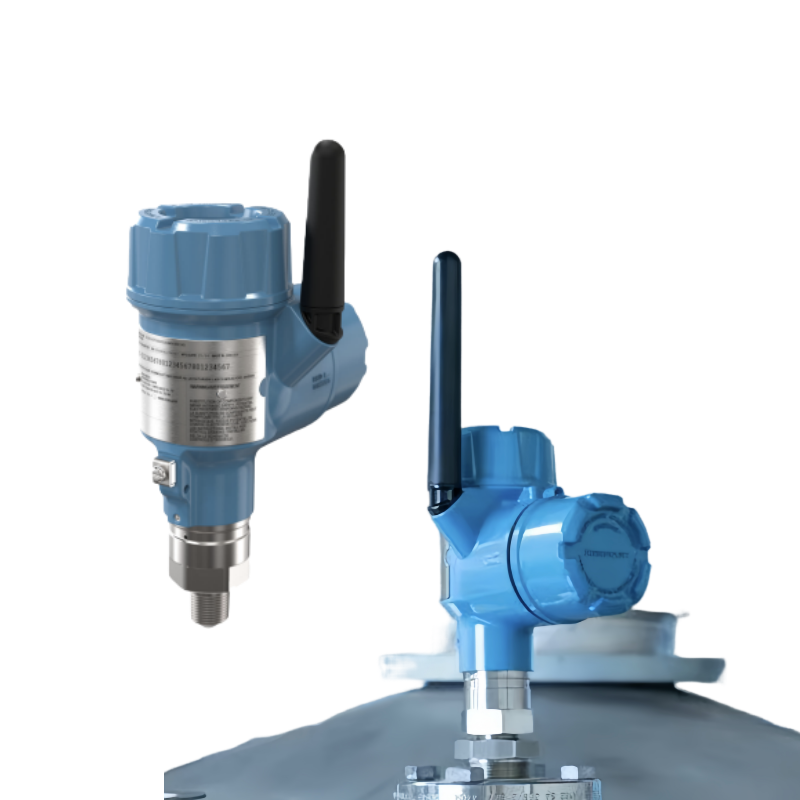

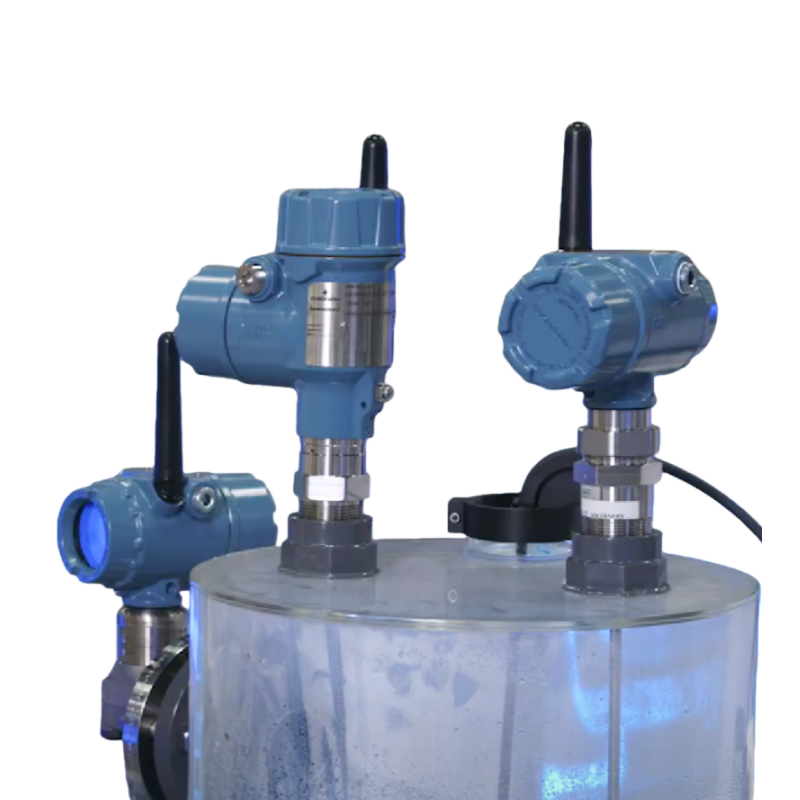

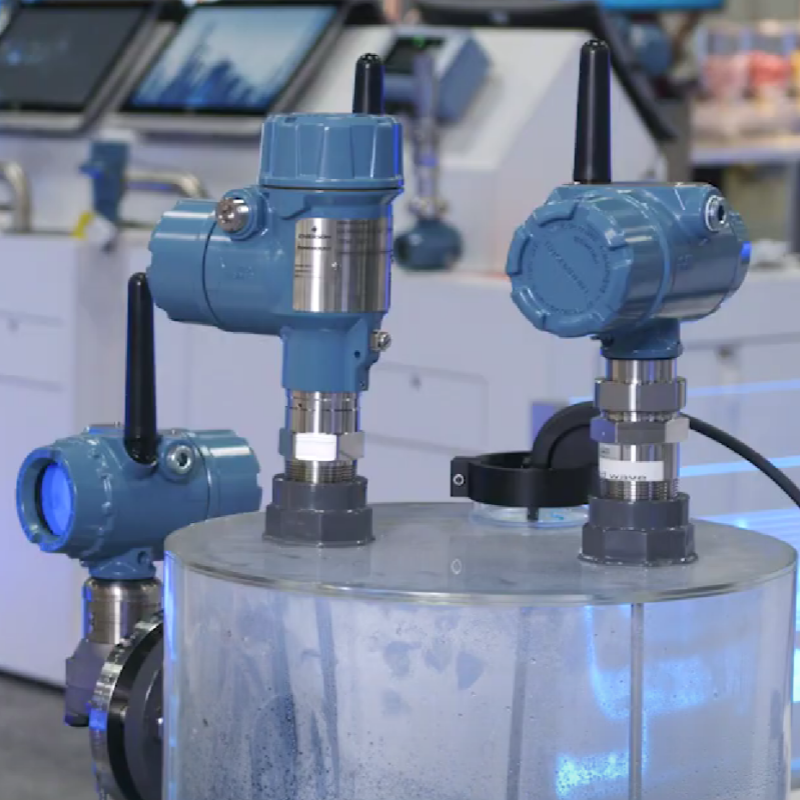

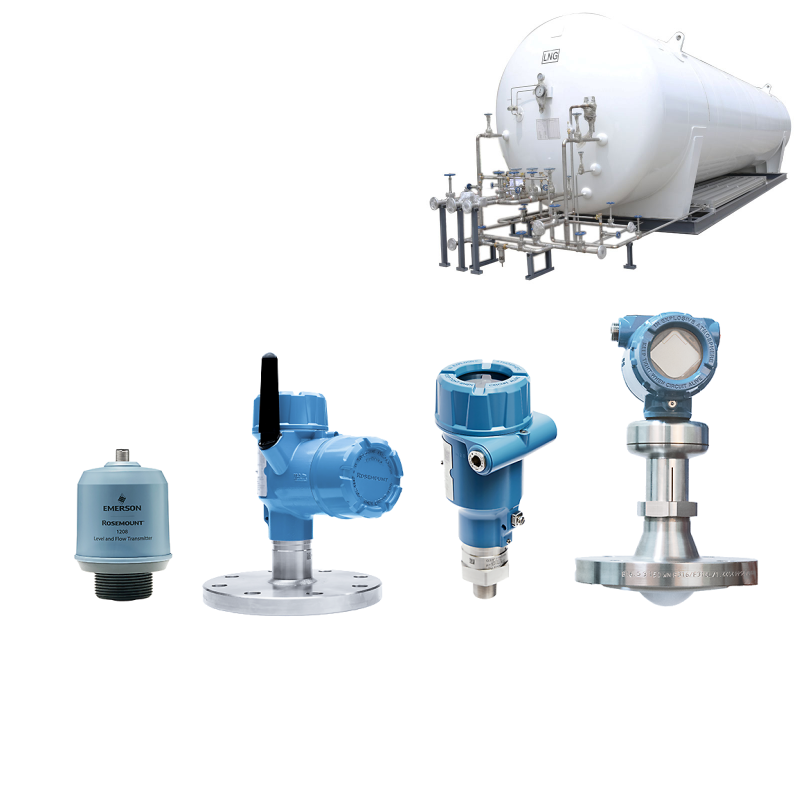

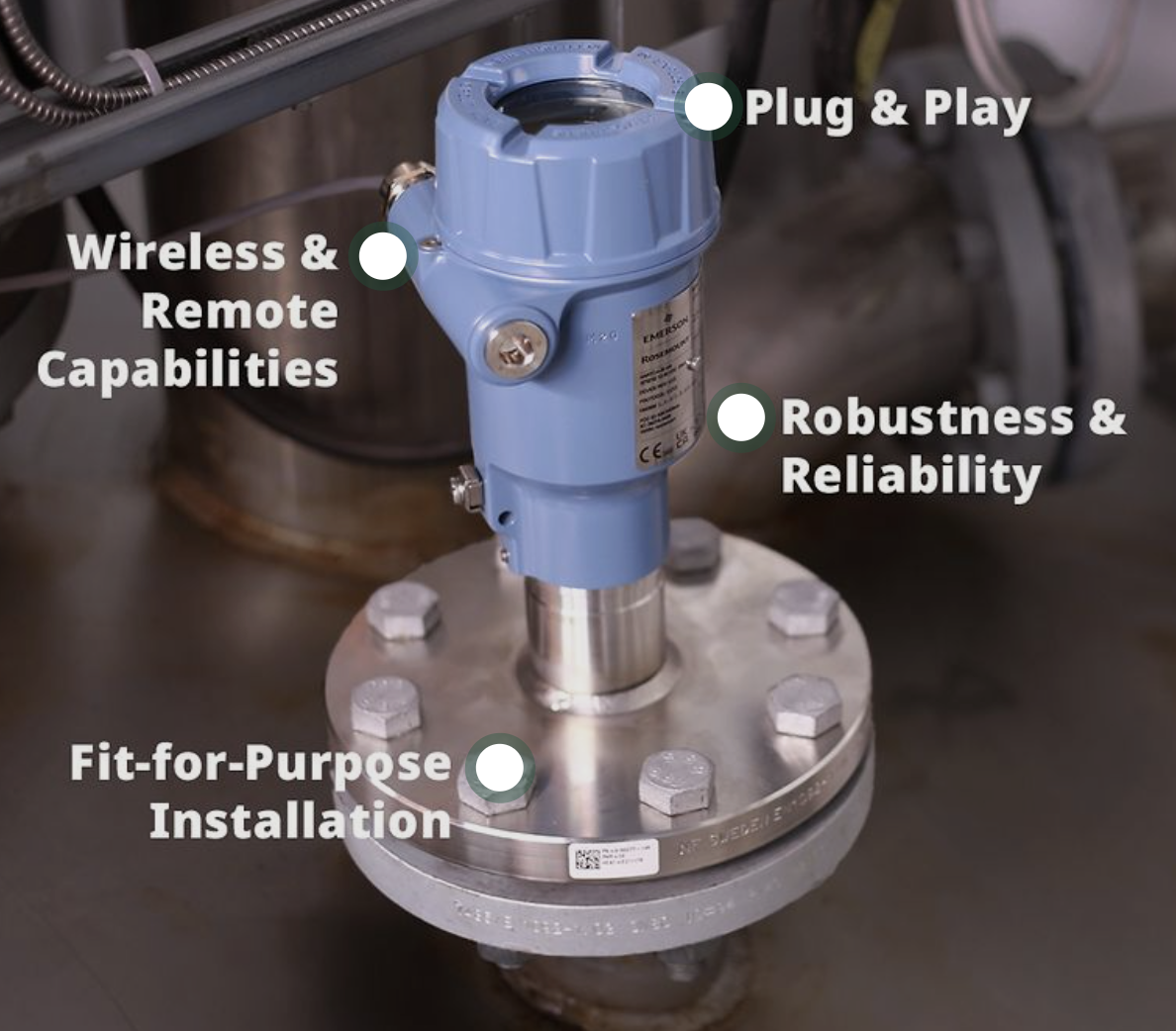

Rosemount Level Transmitter 1208 1408h 3408 5408 Wireless Level Transmitter

Rosemount Wireless Level Transmitters 1208, 1408H, 3408, and 5408 are advanced non-contact radar level measurement solutions developed by Emerson for accurate, reliable, and low-maintenance level measurement in industrial applications. Utilizing modern radar technology and WirelessHART communication, these transmitters eliminate the need for signal wiring and external power, enabling fast installation and stable operation even in remote or hard-to-access locations.

The Rosemount wireless level transmitter series is widely used in water and wastewater treatment, oil and gas, chemical processing, utilities, power generation, tank farms, and general industrial storage applications. With different models optimized for various process conditions, users can select a suitable transmitter based on accuracy, range, temperature, pressure, and installation requirements.

• WirelessHART communication for easy system integration
• Non-contact radar measurement with no moving parts
• Battery-powered operation for flexible installation
• High measurement accuracy and long-term stability
• Reliable performance in steam, vapor, dust, and temperature variations
• Compact design with simplified mounting options
• Quick commissioning and configuration
• Minimal maintenance and reduced total ownership cost
• Secure wireless data transmission for industrial environments

• Measurement Technology: Radar level
• Measurement Type: Continuous level
• Measurement Range: Suitable for short to medium range level applications
• Accuracy: Typical millimeter level precision
• Process Connection: Threaded or bracket mount
• Output Signal: WirelessHART
• Power Supply: Internal battery
• Typical Applications: Water tanks, utility vessels, buffer tanks

• Measurement Technology: Radar level
• Measurement Type: Continuous level
• Measurement Range: Extended range for industrial vessels
• Accuracy: High accuracy for process monitoring
• Process Connection: Flange or threaded mounting options
• Output Signal: WirelessHART
• Power Supply: Internal battery
• Typical Applications: Chemical tanks, industrial liquids, process vessels

• Measurement Technology: 80 GHz FMCW radar
• Measurement Type: Continuous level measurement
• Measurement Range: Up to approximately 15 meters depending on application
• Accuracy: ±2 mm typical
• Process Connection: Threaded or bracket mount
• Output Signal: WirelessHART
• Power Supply: Long-life internal battery
• Typical Applications: Wastewater, sumps, storage tanks, utilities

• Measurement Technology: High-performance FMCW radar
• Measurement Type: Continuous level and interface measurement
• Measurement Range: Long-range industrial tank measurement
• Accuracy: High precision for demanding applications
• Process Connection: Flanged mounting options
• Output Signal: WirelessHART and system-ready integration
• Power Supply: Internal battery or system-based power
• Typical Applications: Oil and gas tanks, chemical storage, refinery vessels

The Rosemount wireless level transmitter family supports a wide variety of industrial measurement needs.

• Process and Storage Tanks
• Water and wastewater treatment facilities
• Chemical and petrochemical storage
• Oil and gas tank farms
• Utility reservoirs and buffer tanks

• Remote and Wireless Installations
• Locations without power or signal wiring
• Temporary measurement points
• Hazardous or difficult-to-access areas

• Industrial Process Optimization
• Inventory monitoring
• Overflow protection
• Process control support
• Backup and redundant level measurement

• What is the advantage of WirelessHART level transmitters
  WirelessHART eliminates cabling and enables faster installation while maintaining reliable and secure communication.
• Can these transmitters be used outdoors
  Yes. Rosemount wireless level transmitters are designed for reliable outdoor operation in industrial environments.
• Are they suitable for dirty or turbulent liquids
  Yes. Non-contact radar technology is ideal for wastewater, slurries, and vapor-heavy conditions.
• How long does the battery last
  Battery life typically lasts several years depending on update rate and operating conditions.
• Can different models operate on the same wireless network
  Yes. All models integrate seamlessly into the same Emerson WirelessHART network.
• Is configuration complicated
  No. Devices are easily configured using Emerson’s wireless tools and handheld communicators.
