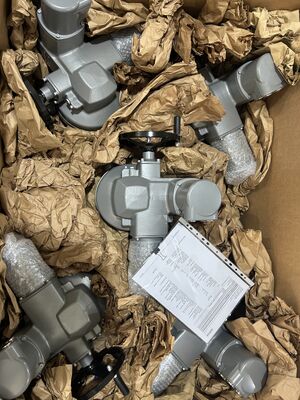

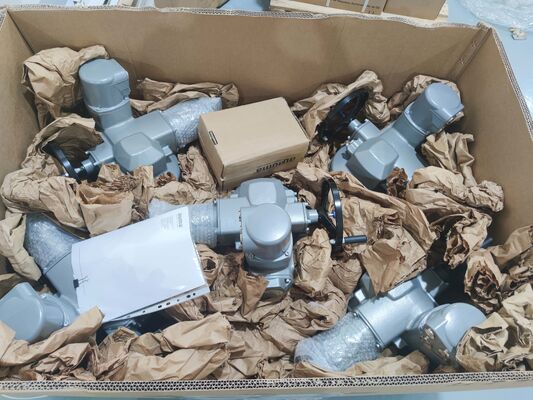

Brand New Auma Electric Actuators SQ10.2-F10 SQ12.2-F12 Universal Replacement

1
MOQ
US $1850.00 - 2400.00/ Set
価格
Brand New Auma Electric Actuators SQ10.2-F10 SQ12.2-F12 Universal Replacement
特徴 ギャラリー 製品の説明 評価とレビュー 見積依頼
特徴
仕様
媒体の温度: 高温
トルク範囲: 10 Nm から 32 000 Nm
回転角度: 最小2.5°最大100°
メディア: ガス
基本情報
起源の場所: 中国
ブランド名: Auma
モデル番号: SQ10.2-F10、SQ12.2-F12
お支払配送条件
パッケージの詳細: 段ボール箱・木箱
受渡し時間: 4〜8週間
支払条件: T/T
供給の能力: 1年ごとの3000セット
製品の説明
AUMA SQ10.2-F10 / SQ12.2-F12 Part-Turn Electric Actuator Product Description
Product Overview
  1. Quarter-turn electric actuators for open-close and positioning duty (S2 – 15 min short-time duty), designed to drive ball valves, butterfly valves and plug valves.
  2. Built-in limit and torque sensing mechanism, equipped with standard handwheel for emergency manual operation, and mechanical position indicator for on-site status check.
  3. Modular structure compatible with multiple control schemes (basic on-off control to intelligent AUMATIC AC 01.2 with fieldbus), mounted via ISO 5211 standard flange.
Technical Specifications
Parameter SQ10.2-F10 SQ12.2-F12
Nominal Torque Range 200 – 800 Nm 400 – 1200 Nm
90° Operating Time 8 – 100 s (gear ratio dependent) 8 – 100 s (gear ratio dependent)
Enclosure Protection IP67 (standard), IP68 optional IP67 (standard), IP68 optional
Mounting Standard ISO 5211 F10 flange ISO 5211 F12 flange
Ambient Temperature -30 °C ~ +70 °C (standard version) -30 °C ~ +70 °C (standard version)
Application Industry
  1. Oil & Gas: Pipeline valve automation and process flow control in midstream & downstream industrial facilities.
  2. Water & Wastewater Treatment: Pump station, filtration system and sewage pipeline on-off regulation.
  3. Power Generation & Chemical: Boiler auxiliary systems, chemical process pipelines and general industrial valve control.
Common Problems & Solutions
  1. Actuator fails to start: Verify power supply and phase sequence, reset over-torque protection and check torque switch status.
  2. Inaccurate end position: Re-calibrate open/close limit settings, inspect and clean limit switch contacts.
  3. Motor overheating: Strictly follow S2-15 min duty cycle, check valve load torque matching and thermal protection circuit.
Replacement Models
  1. Cross-brand direct equivalent: Rotork IQT100 / IQT200 series part-turn actuators (matched torque range, ISO flange compatible).
  2. Same-brand upgrade: AUMA SQR10.2 / SQR12.2 (modulating duty version for continuous flow regulation scenarios).
  3. Alternative equivalent: Limitorque QX-100 / QX-200 series quarter-turn electric valve actuators.
Why Buy From Us
  1. 100% original AUMA genuine products, with official quality assurance and complete technical documentation.
  2. Sufficient ready stock of standard units and spare parts, free professional sizing and selection support.
  3. Customizable configurations (voltage, control unit, explosion-proof option), fast quotation and efficient order processing.
Stock & Delivery Time

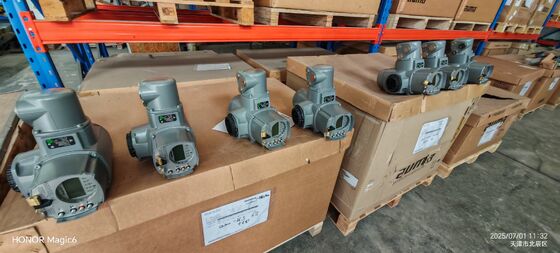

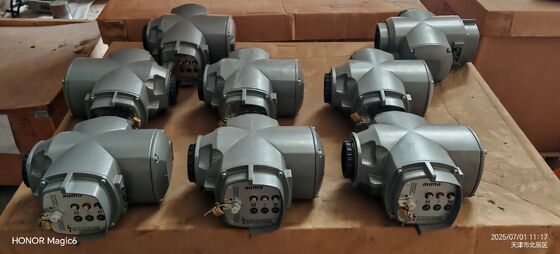

  1. Standard SQ10.2-F10 / SQ12.2-F12 units: In stock, dispatched within 3–5 working days after payment.
  2. Custom-configured actuators: 15–25 working days production lead time from AUMA factory.
  3. Global shipping via DHL/FedEx/sea freight, full tracking information provided immediately after shipment.
RFQ Form
  1. Exact model, required quantity, and configuration details (control type, voltage, special functional options).
  2. Working conditions: Valve type, required torque, medium temperature and pressure range.
  3. Delivery destination, expected lead time, and certification requirements (if any).
